Roof Eave

Parts of a Roof Overhang

6 minutes

Roofs are an integral part of any structure, serving as the primary barrier against the elements. Yet, there is one feature of many roofs that often goes unnoticed and underappreciated: the roof overhang. This seemingly simple extension holds significance in both design and function. But what exactly is a roof overhang? Why is it important? And which components constitute this architectural element?

Here we will discuss the ins and outs of the roof overhang. Starting with its basic definition, we will highlight its primary functions and discuss its various components in detail. By the end, you will have a comprehensive understanding of what a roof overhang is but also its critical role in architectural design.

What is a Roof Overhang & Why is it Important?

A roof overhang, simply put, refers to the part of a roof extending beyond a building’s exterior wall. It is the portion that juts out, creating a projection or “lip” that goes beyond the structure’s main vertical supports. This architectural feature can be observed on many homes, buildings, and structures around the world, and its design and dimensions can vary widely based on architectural styles, local climates, and specific requirements of a building.

The importance of a roof overhang can be highlighted in several ways:

  • Protection Against the Elements: One of the primary purposes of an overhang is to deflect rainwater away from the foundation of a building. By doing so, it minimizes the risk of water damage, erosion, and even potential flooding.
  • Energy Efficiency: A properly designed roof overhang can offer shade during the hotter months, preventing direct sunlight from hitting and heating walls and windows. This can reduce the need for air conditioning and lead to energy savings.
  • Aesthetic Appeal: Architecturally, roof overhangs can contribute to the overall appearance and style of a building. They can be tailored to match various architectural styles, from modern minimalist designs to more traditional and ornate structures.
  • Protection for Siding and Paint: The overhang can protect exterior sidings, paint, and finishes from premature wear and tear caused by the elements, especially rain and direct sunlight.
  • Ventilation and Insulation: Some roof overhang designs incorporate soffit vents that allow for adequate attic ventilation. This promotes energy efficiency and reduces the chances of moisture buildup, which can lead to issues like mold or structural damage.
  • UV Protection: Overhangs also protect windows and doorways from harmful UV rays that can degrade materials and fade colors over time.

What are the Roof Overhang Parts?

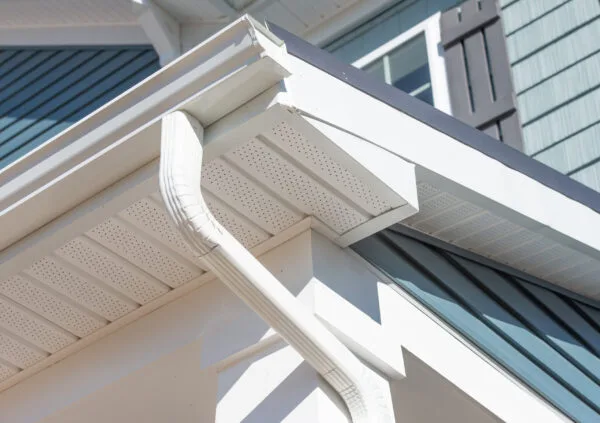

A roof overhang comprises of several components, each serving a unique purpose and contributing to the overall structure and functionality of the overhang. Here are the primary parts of a roof overhang:


This is the vertical finishing edge at the bottom of the overhang. The fascia board is attached directly to the trusses or rafters of the roof. It is the component you see on the edge and often serves as the point of attachment for gutters.


Located directly beneath the overhang, the soffit is the horizontal component stretching from the eave’s outer edge to the side of the building. Soffits often have vents to facilitate airflow into the attic or roof space, which helps in ventilation and regulating temperature.


The eave is the entire section of the roof that protrudes beyond the home’s walls. It consists of both the fascia and the soffit. The eave provides the structure to the overhang and determines how far it extends out from the building.


These are the structural members, often in the form of braces, that extend from the exterior wall and provide support to the overhang. They help give structure and stability to the projecting eave.


While not always present on every roof overhang, gutters are commonly attached to the fascia. They channel rainwater away from the structure, directing it towards downspouts and ensuring it does not accumulate around the building’s foundation.

Box End

This is where the fascia and soffit meet at the corners, providing a neat finish to the overhang. It is the ‘box’ that seals the end of the overhang, preventing birds and pests from entering the roof space.

Frieze Board

A frieze board is a horizontal board that is installed flat against the wall and is located at the top of the wall right below the soffit (the underside of the eave). It is part of the cornice or the trim details of a home’s exterior. The frieze board serves both decorative and functional purposes. Functionally, it provides a clean, finished look by covering the top ends of the siding materials and the gap between the siding and the soffit.

Soffit Vents

These are vents incorporated into the soffit design, allowing for air circulation into the attic or roof space. They play a key role in preventing moisture buildup and maintaining temperature balance.

Drip Edge

A drip edge is a metal flashing or edge that is installed at the edges of the roof and overhang. It ensures that rainwater drips away from the structure, preventing water infiltration at the edge of the roof.
