The shape of your roof effects everything from how well it stands up to severe weather to how much usable space sits beneath it. This guide covers the most common and notable roof shapes, breaks down what each one means for your home’s structure and performance, and helps you make an informed decision whether you are building new, planning a replacement, or simply want to know what is sitting above your head.
How Roof Shapes Affect Building Structure and Design
Your roof does far more than keep rainwater out of your home. It defines your home’s silhouette, influences how well your structure holds up against wind and snow, and plays a significant role in your property’s overall value. Whether you are building from the ground up, planning a replacement, or simply trying to identify the shape sitting atop your house, knowing the differences between roof types puts you in a better position to make smart decisions.
A roof shape is never just an aesthetic choice. The geometry determines how structural loads — weight from snow, wind pressure, and the roof’s own mass — transfer down into the walls and foundation. A steeply pitched roof sheds water and snow quickly but generates more outward thrust on the walls below. A low-slope or flat roof is easier and cheaper to build but demands more rigorous waterproofing. Every shape is a trade-off, and the right one depends on your climate, your budget, and what you want your home to look like.
Overview of Roof Pitch and Its Implications
Your homes roof pitch refers to how steep a roof is, expressed as a ratio of rise over run. A 4/12 pitch, for example, means the roof rises 4 inches for every 12 inches of horizontal distance. The pitch of a roof has a direct impact on how it performs, what materials can be used, and how the space beneath it feels.
Low-slope roofs, ranging from 1/12 to 3/12, are common on commercial buildings and modern residential designs. They require specialized waterproofing membranes because water drains slowly, and while they are cost-effective to build, they need more maintenance attention over time. Conventional slopes between 4/12 and 9/12 are the most common range for residential homes — water drains efficiently; most standard roofing materials work well, and attic ventilation is straightforward. GAF HDZ asphalt shingles, for instance, are rated for any slanted roof with a pitch of 2/12 or greater. Steep slopes of 10/12 and above are found on older Victorians, cottages, and homes with dramatic architectural styles. These roofs shed water and debris exceptionally well and allow for significant attic or living space beneath, though the trade-off is higher material and labor costs since steep surfaces require more material and are harder to work on safely.
Common Roof Shape Types

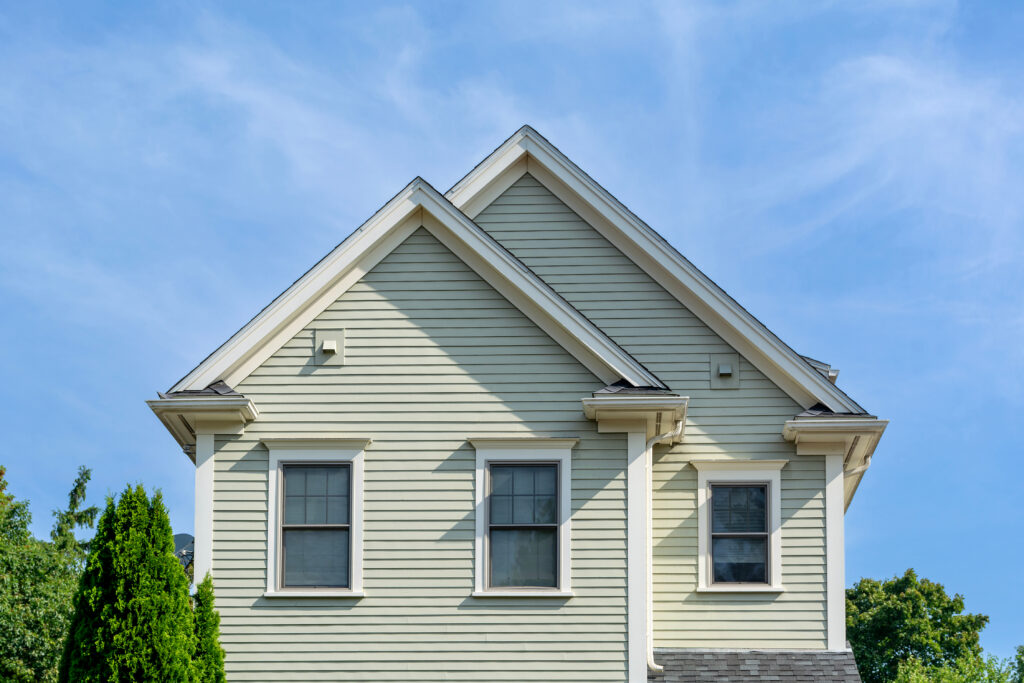

Gable Roof
The gable roof is the shape most people draw when they picture a house — two sloping sides meeting at a central ridge, forming a triangular peak at each end. It is the most widely used roof shape in North America, and its popularity comes down to a combination of simplicity, performance, and cost.
The straightforward geometry makes it easy to frame, and the slope naturally channels water and snow off the surface without much intervention. Attic ventilation is easy to achieve through gable vents at each triangular end wall, and there is plenty of storage space — or room for an additional story if the pitch is steep enough. Gable roofs perform especially well in areas with heavy rain or snowfall, where keeping weight off the roof is a priority during winter months.
In high-wind regions, however, the gable’s exposed end walls can work against it. The overhanging eaves can act like sails in a hurricane or severe windstorm if the structure is not properly braced with collar ties and hurricane straps. It is a manageable limitation, but worth weighing against alternatives like the hip roof in storm-prone areas. Gable roofs also come in several variations — the cross-gable, where two roofs intersect at a right angle over an L-shaped footprint; the Dutch gable, a hybrid that places a small gable atop a hip roof; and the box gable, where the triangular end sits flush with the wall below.

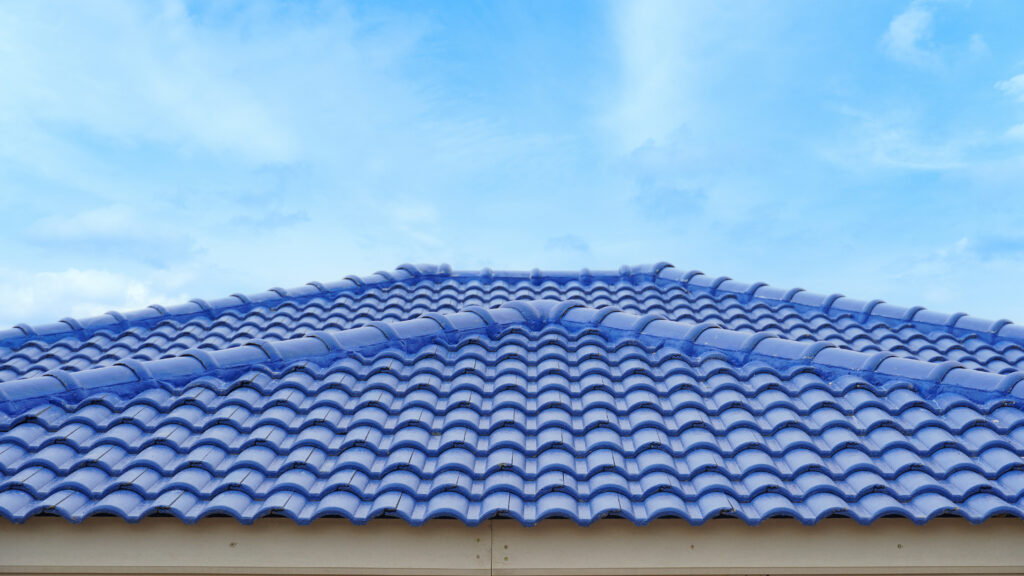

Hip Roof
A hip roof slopes on all four sides, with each surface angling inward to meet at the top ridge. Unlike a gable roof, there are no vertical end walls — every face of the roof contributes to the slope, which changes both how the structure behaves in wind and how the home looks from the street.
Because all four sides slope toward the center, hip roofs are structurally self-bracing. Wind loads distribute more evenly around the building rather than pushing against a flat gable end, which is why hip roofs are the preferred choice in hurricane zones, coastal areas, and high-wind regions. Building codes in parts of Florida and along the Gulf Coast often favor or require hip roof geometry for exactly this reason. The aerodynamic profile reduces the uplift forces that can cause serious damage in a severe storm.
The trade-off is cost and complexity. Hip roofs require more cuts, materials, and labor hours than a comparable gable roof. Attic ventilation is also trickier without gable ends, typically relying on a combination of ridge vents and soffit vents to move air effectively. Common hip variations include the pyramid hip, where all four sides meet at a single peak over a square structure; the cross-hip, where two hip roofs intersect on a more complex floor plan; and the half-hip, where the ends are partially clipped rather than running the full height of the wall.
Flat Roof
Despite the name, flat roofs are never truly flat. They maintain a very slight pitch — typically around 1/4 inch per foot — to allow water to drain toward internal drains or scuppers at the edges. The term “flat” simply refers to their near-horizontal appearance compared to other roof types.
What flat roofs lack in slope they make up for in usable space. Rooftop decks, HVAC equipment, solar panels, and green roofs are all more practical on a flat surface, which is why flat roofs dominate commercial construction and remain popular on modern and mid-century residential designs. They are also economical to build — less material, simpler framing, and faster installation than a pitched roof. In arid climates like the Southwest, flat roofs perform without issue because rain is infrequent and snow accumulation is rarely a concern.
In wetter or snowier climates, water management becomes the defining challenge. Without adequate slope, standing water can form — a condition known as ponding — which accelerates membrane deterioration and leads to leaks over time. Regular inspection and maintenance are non-negotiable. The most common flat roof materials include TPO, EPDM rubber, modified bitumen, and built-up roofing, all of which are engineered to be fully waterproof rather than simply water-resistant in the way asphalt shingles are.
Less Common Roof Shapes

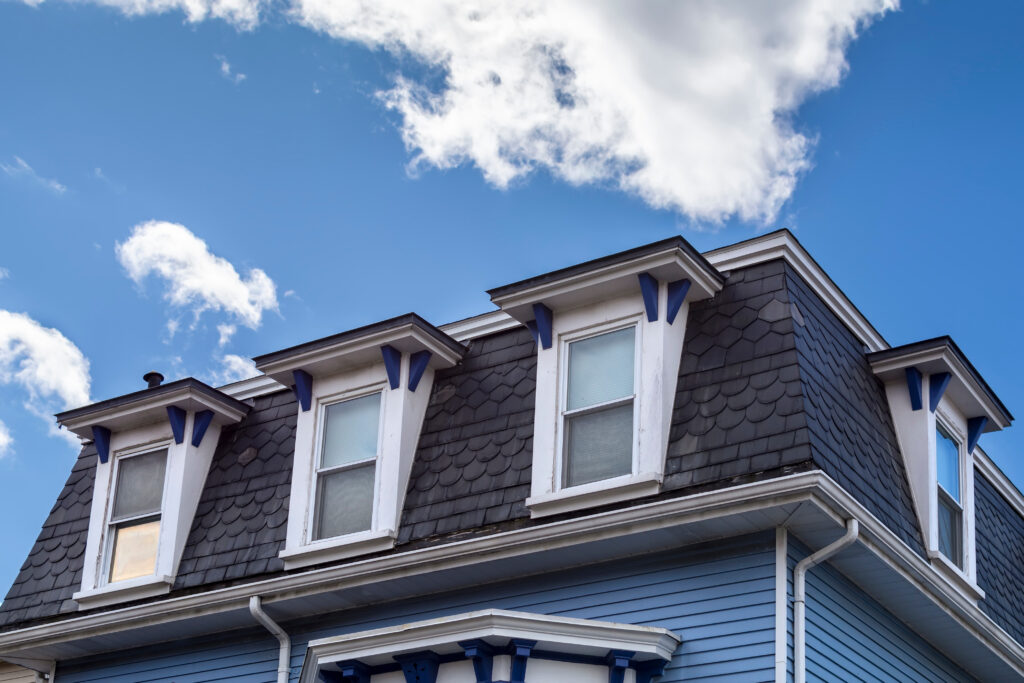

Mansard Roof
The mansard roof, also called a French roof, has four sides, each with two distinct slopes. The lower slope is steep, nearly vertical, while the upper slope is shallow and barely visible from the ground. Dormers are frequently cut into the steep lower section to add windows, light, and architectural character.
The style’s origins trace back to Pierre Lescot, who used the design on a portion of the Louvre around 1550. It was French architect François Mansart (1598–1666) who brought the form into widespread use during the early 17th century, refining and championing it to the point that it bears his name today. The style was later popularized across Europe and North America during the Second French Empire under Napoleon III in the mid-to-late 1800s, where it became strongly associated with Second Empire Victorian architecture. Historic government buildings, grand hotels, and ornate homes from that period frequently feature it. The practical appeal was real; the steep lower slope essentially creates an extra full story within the roof envelope, giving attic rooms proper ceiling height rather than cramped, sloped walls. In urban settings with zoning height restrictions, this made the mansard a clever way to add floor space without technically adding a full story.
Today, mansard roofs are chosen almost exclusively for their distinctive historical appearance. The shallow upper slope is prone to pooling water and requires durable, well-maintained roofing materials to hold up over time. Construction is complex and expensive, which makes the mansard a style-driven decision rather than a practical one for most homeowners.
Gambrel Roof
The gambrel is the classic barn roof, two sides, each broken into two slopes. The lower slope is steep, often reaching 60 to 70 degrees, while the upper slope is much shallower. Viewed from the end of the building, the profile forms a wide pentagon that immediately reads as agricultural or colonial in character.
American barns are the most recognizable application, but gambrel roofs also appear on Dutch Colonial homes, carriage houses, and Cape Cod residences throughout New England and the Mid-Atlantic. Dutch settlers brought the style to America and found it practical for maximizing loft storage in barns and outbuildings. The steep lower slope pushes the usable interior volume outward, creating a broad open space beneath that functions more like a full upper floor than a cramped attic. In residential applications, this translates to significantly more headroom and livable square footage compared to a standard gable attic.
The gambrel’s main limitation is its architectural context. The style reads as rustic or colonial, which does not translate well to every home design. It is also more complex to frame than a simple gable. In regions with very heavy snowfall, the geometry can allow accumulation on the lower section rather than shedding it cleanly, which is a structural consideration worth discussing with a contractor before committing to the design.
Shed Roof
A shed roof. sometimes called a skillion roof, is a single sloping plane that runs from a high wall down to a low wall, with no ridge and no opposing slope. It is the simplest roof geometry in residential construction, and in recent years it has become one of the most architecturally striking.
The shed roof has seen a significant resurgence in contemporary residential design. Its clean, uninterrupted profile pairs naturally with modern and minimalist aesthetics, and a dramatic shed roof with high clerestory windows along the tall wall can flood an interior with natural light in a way no other roof shape can replicate. The construction advantages match the visual ones, no ridge board, no complex valley cuts, minimal material waste, and fast installation make shed roofs one of the most cost-effective options available. Additions, carports, small outbuildings, tiny homes, and accessory dwelling units all make frequent use of the shed roof for exactly these reasons.
The trade-off is in structural span and snow management. A single-direction slope limits ceiling design options for larger interiors, and wide shed roofs require more structural depth to avoid deflection. In heavy snow regions, all accumulation concentrates at the low side of the roof, which needs to be factored into the structural design from the start.

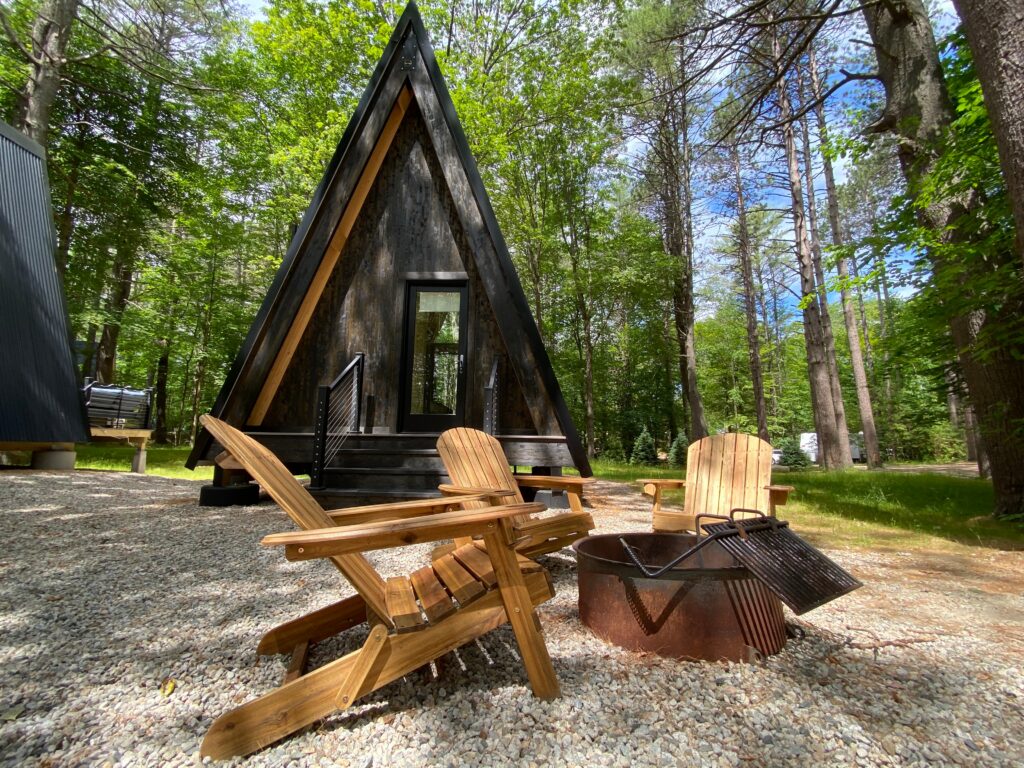

A-Frame Roof
The A-frame roof is exactly what it sounds like. The roof and walls form a single continuous triangle from the ridge all the way down to the foundation, creating a cross-section that looks like the letter A. There is no traditional wall structure; the roof essentially is the building’s exterior.
This shape is most commonly associated with mountain cabins and ski lodges, and for good reason. The extreme pitch sheds snow almost immediately, preventing the kind of structural loading that causes collapses in heavy snowfall regions. The steep slope also means rain runs off quickly and efficiently. Inside, the A-frame creates a dramatic vaulted ceiling at the peak with usable floor space concentrated at the base, though the sloping walls limit where furniture can be placed and how upper levels can be finished. A-frames have had a strong resurgence in the tiny home and vacation cabin market, valued for their distinctive silhouette and their ability to perform in harsh climates with minimal maintenance.
Butterfly Roof
The butterfly roof is essentially an inverted gable, two roof planes slope downward toward the center rather than upward, forming a V shape when viewed from the end. The low point runs along the middle of the building, with the outer edges raised at each side.
The design is a bold architectural statement and is most at home on contemporary and modernist builds. The raised outer edges create tall wall surfaces on each side of the structure, which is ideal for installing large windows and maximizing natural light. Some homeowners use the valley at the center to collect and channel rainwater into cisterns for reuse, which gives the butterfly roof an eco-friendly dimension that other shapes cannot easily replicate. The trade-off is significant. That low center point is the first place water and debris collect, so the drainage system must be carefully designed and regularly maintained. In snow-heavy climates, the butterfly roof is impractical. It is a design-forward choice suited to mild climates where its vulnerabilities are less of a daily concern.

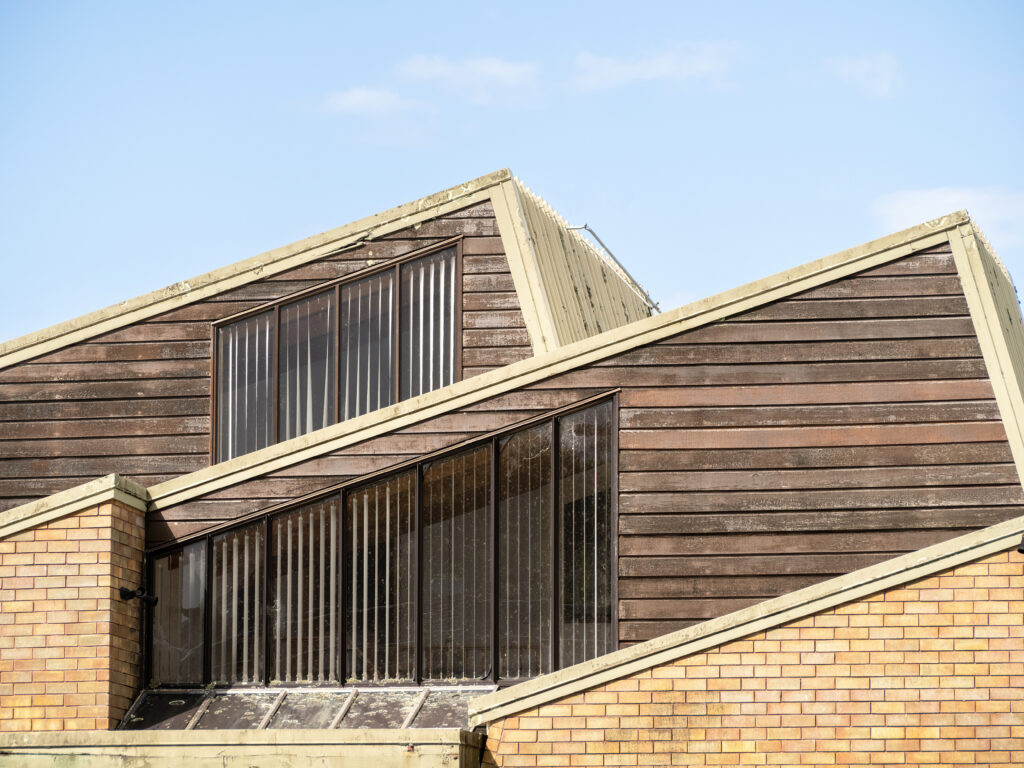

Saltbox Roof
The saltbox is an asymmetrical gable roof where one side is significantly longer than the other, creating an uneven slope that gives the roof a distinctive lean. The name comes from the wooden lidded boxes once used to store salt in colonial households, which shared the same lopsided profile.
Saltbox roofs have deep roots in New England colonial architecture, where the style developed as a practical solution for adding lean-to additions to the rear of a home without building a full second story. The long rear slope extended down over the addition, creating the characteristic asymmetry. The shape performs well in wind and sheds water and snow efficiently on both sides, though the shorter front slope and longer rear slope handle loads differently. In modern applications, the saltbox is used for its rustic colonial character as much as any structural advantage. It suits craftsman, farmhouse, and traditional home styles particularly well.
Bonnet Roof
The bonnet roof is best understood as the inverse of a mansard. Where a mansard has a shallow upper slope and a steep lower slope, a bonnet reverses that arrangement. The upper slope is steep and the lower slope kicks outward at a shallower pitch, creating a wide overhang that wraps around all four sides of the building like the brim of a hat. That broad lower eave extends well beyond the exterior walls, providing generous shade and weather protection on every side.
The style has strong ties to French Creole architecture in Louisiana and the American South, where wide overhangs were a practical response to the region’s intense sun and frequent rainfall. The overhang naturally shelters any wraparound porch beneath it, which is why bonnet roofs are closely associated with classic Southern plantation-style homes. Structurally, the bonnet performs similarly to a hip roof in wind resistance since all four sides slope, though the two-pitch geometry and the flared lower section add framing complexity compared to a standard hip. It is a relatively rare roof type today, chosen primarily for its historical character and its strong regional architectural identity.

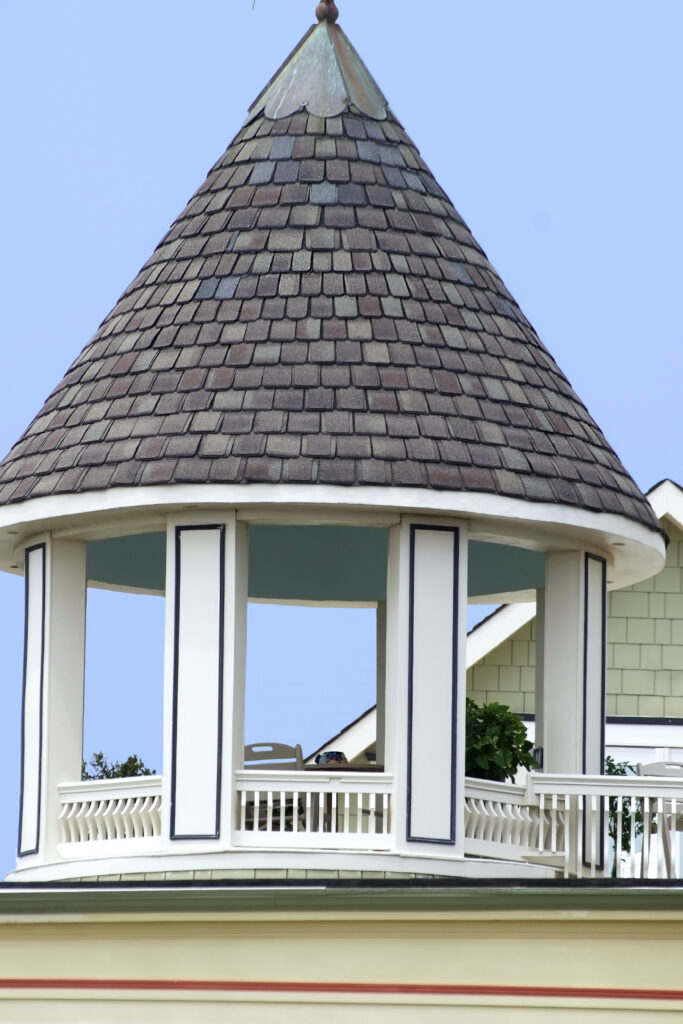

Witch’s Hat Roof
The witch’s hat roof, more formally called a turret or conical roof, is a steeply pitched, cone-shaped roof that sits atop a round or polygonal tower. The profile tapers sharply to a point at the top, producing the silhouette that gives it its colloquial name.
This roof type is almost exclusively an architectural accent rather than a primary roof form. It appears on round tower rooms, corner turrets, and bay window extensions on Victorian, Gothic Revival, and Romanesque homes, where it adds dramatic vertical emphasis and historical character. The steep cone sheds water and debris efficiently and requires minimal surface area of roofing material relative to the height it achieves. Constructing a true conical roof requires skilled carpentry to cut and fit the converging rafters, and the curved surface can be challenging to shingle cleanly. Metal roofing is often used for witch’s hat roofs because it can be fabricated to follow the curve more precisely than cut shingles. Today the style is also occasionally used on gazebos, decorative towers, and custom homes that draw on Victorian or fairy-tale architectural themes.
Sawtooth Roof
The sawtooth roof consists of a series of parallel ridges with alternating slopes, one vertical or near-vertical face and one angled slope repeated across the width of the structure, producing a profile that resembles the teeth of a saw blade when viewed from the end.
The near-vertical faces of the teeth are typically glazed with windows, making the sawtooth one of the most effective roof designs for bringing consistent, diffused natural light deep into a wide building. This is why the form originated in industrial buildings — factories, warehouses, and mills where even daylight across a large floor was both a productivity and safety concern. In modern architecture, the sawtooth roof has been adopted in residential design, particularly on contemporary homes and studios where the owner wants dramatic interior light without the glare of south-facing skylights. The trade-off is maintenance complexity — the multiple ridges, valleys, and glazed panels create more opportunities for leaks than a simpler roof geometry, and they require more frequent inspection and upkeep.
Dome Roof
The dome roof curves in all directions simultaneously to form a hemispherical or elliptical shape over the structure below. It is one of the oldest roof forms in architectural history, found on everything from ancient religious buildings to modern sports arenas, and it brings a set of structural properties that no other roof shape can match.
A dome distributes loads evenly across its entire curved surface, making it exceptionally strong relative to its weight. It resists wind from all directions without a vulnerable face, and the smooth curved geometry sheds water continuously across the full surface. Dome roofs have been documented to withstand extreme wind events, and poured concrete domes are among the most impact-resistant structures in residential construction. In homes, full dome roofs are rare because the round footprint does not align easily with conventional room layouts, and the construction cost is substantially higher than any standard framed roof. Where they do appear, it is typically on round or octagonal homes, custom architectural projects, and owner-built structures where the owner prioritizes durability and energy efficiency over conventional aesthetics. Partial dome elements are more commonly used as architectural accents on entryways, sunrooms, and conservatories.
Barrel Vault Roof
The barrel vault — also called an arched or curved roof — consists of a single continuous curve running the length of the building, like a half-cylinder laid on its side. Unlike the dome, which curves in all directions, the barrel vault curves in only one direction, creating a tunnel-like profile with flat gable ends.
The form dates back to ancient Roman architecture, where it was used in aqueducts, baths, and basilicas, and it remained a staple of ecclesiastical and civic architecture through the medieval period and beyond. In modern construction, barrel vault roofs appear on Quonset huts, sports facilities, transit terminals, and contemporary residential projects where the architect wants a strong, sweeping form. The curved profile sheds water continuously to the eaves and resists wind reasonably well. The challenge in residential use is the transition between the curved surface and the flat gable ends, which requires careful detailing to prevent leaks, and the near-flat zone at the crown of the curve, which typically needs a membrane roofing system since asphalt shingles require a minimum slope to perform properly.
Monitor Roof
The monitor roof features a raised central section running along the ridge of the building, with vertical walls — usually fitted with windows or ventilation louvers — sitting above the main roof planes on each side. The result looks like a smaller structure riding on top of the main roof.
The primary purpose of the monitor is light and ventilation. The elevated windows can be oriented to catch prevailing breezes, which draws hot air up and out of the building through convection. This made the monitor roof a practical solution in pre-air conditioning factory and barn construction, and it remains common on agricultural buildings, barns, and large open-plan structures where passive ventilation matters. In residential architecture, the monitor roof is occasionally used on modern custom homes where the owner wants clerestory light along the central ridge without committing to a full shed or butterfly roof. The raised section also creates a more dynamic roofline than a standard gable, which some architects use for visual effect.
FAQ: Roof Shapes
Our most frequently asked questions about the different styles and shapes of roofs:
What is the strongest shape for a roof?
The hip roof is widely regarded as the strongest common residential roof shape. Because all four sides slope toward the center, the structure is inherently self-bracing — there are no exposed gable ends to catch wind, and loads distribute evenly across all four walls rather than concentrating on two. Hip roofs consistently outperform gable roofs in hurricane and high-wind testing, which is why they are the standard in storm-prone coastal regions. For flat or low-slope roofs, the strength of the assembly depends more on proper structural engineering and material selection than on shape alone.
What is better — trusses or rafters?
Both systems are structurally sound when professionally designed, and the right choice comes down to the specifics of the project. Trusses are engineered wood assemblies fabricated off-site and installed quickly, often in a single day. They span long distances without interior bearing walls, tend to be more cost-effective for standard home sizes, and are optimized by structural engineers for load distribution. The downside is that the web of bracing inside a truss occupies the attic space, leaving little room for storage or any future conversion to living space.
Rafters are cut and assembled on-site, which gives framers and designers more flexibility to work with complex geometries and custom roof lines. The open attic space they leave behind is valuable for storage, mechanical systems, or finishing. The trade-off is higher labor cost and longer installation time. For most production homes, trusses win on efficiency. For custom builds, additions, or any project where the attic space has potential value, rafters are worth the additional investment.
What is a curved roof called?
Curved roofs go by several names depending on their geometry. An arched or barrel vault roof curves in a single direction like a half-cylinder, a form common on Quonset huts, warehouses, and older ecclesiastical buildings. A dome roof curves in all directions to form a hemispherical or elliptical shape. A catenary roof follows the natural curve formed by a hanging chain, which distributes loads efficiently and is used in some large-span architectural structures. In contemporary design, free-form curved roofs are often described as shell roofs or identified by their specific geometric form, such as a hyperbolic paraboloid. All curved roof types require specialized structural engineering and either custom framing or structural steel to execute properly.
What shape of roof is best?
There is no single best roof shape — the right answer depends on climate, budget, home style, and how the space beneath the roof will be used. For wind resistance and storm performance, a hip roof is the clear choice. For simplicity and cost-efficiency, a gable is hard to beat. For maximizing livable space within the roof envelope, a mansard or gambrel delivers in ways a standard gable cannot. For modern aesthetics and passive daylighting, a shed or flat roof suits contemporary architecture well. For regions with heavy rain or snowfall, any roof with a pitch of 4/12 or greater will outperform a low-slope design in terms of drainage and load management. The most reliable approach is to match the shape and pitch to your climate first, then work backward through budget and style to land on the right choice.
